90mm (3-1/2") Coil Nailer
(Wire Collated Coil Type) NV90AG

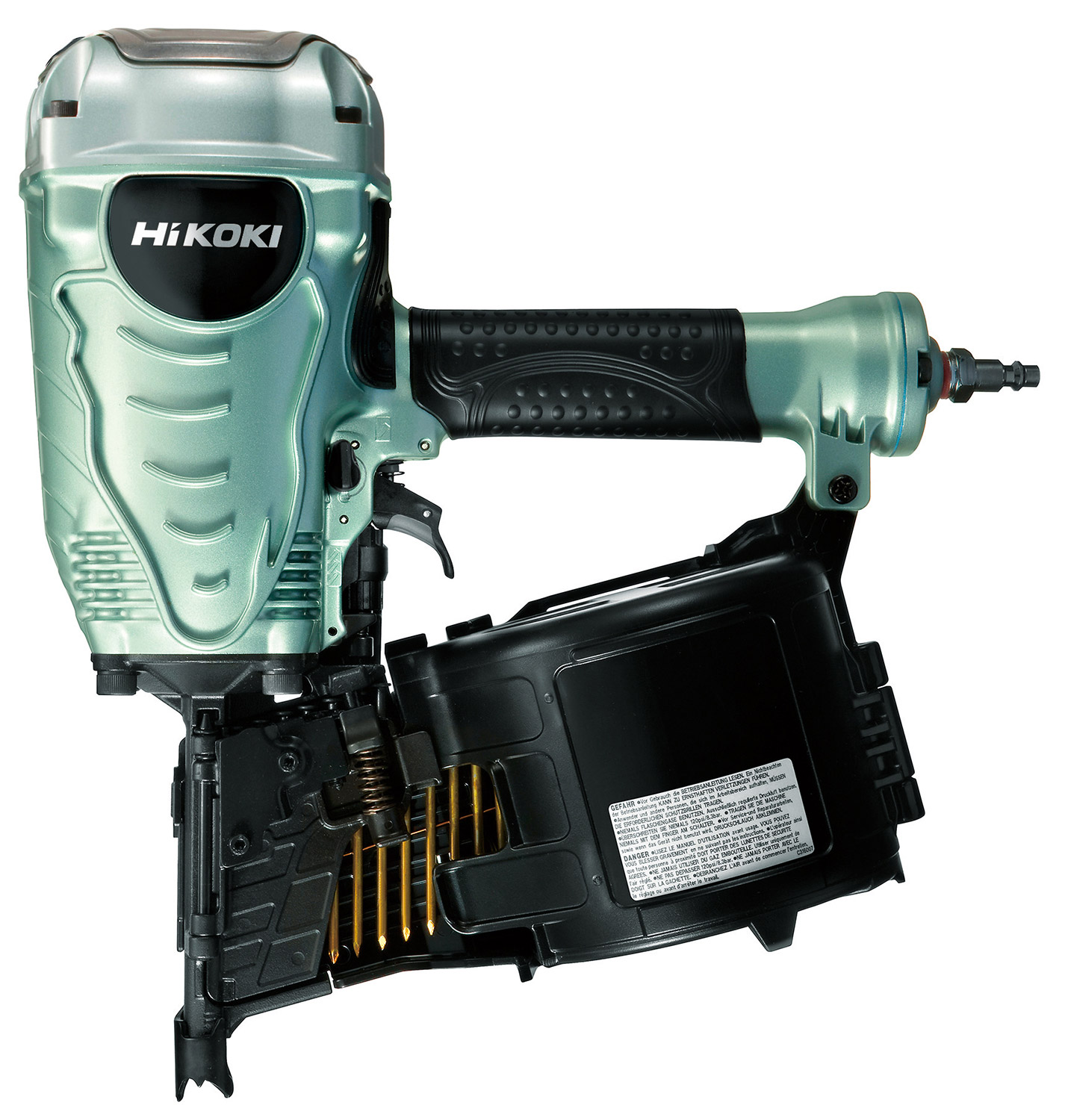

Image of NV90AG

Features

  • Compact and lightweight
  • "Single sequential actuation" and "Contact actuation" nailing change mechanism
  • For wire collated nails
  • Easy top loading pop-out magazine
  • Tool-less adjustment in driving depth
  • Elastomer-layered trigger for comfort
  • Rubber grip

Specifications

Driving System Piston Reciprocating Action
Operating Pressure Range in 5 - 8.5 kgf/cm2
Gauge Pressure (70 - 120 psi)
Driving Speed 3 nails/sec.
Loading capacity 200 - 300 nails
Air Inlet NPT 3/8 Thread
Dimensions (L x H) 336 mm x 332 mm (13-1/4" x 13-1/16")
Weight 3.5 kg (7.7 lbs.)
Standard Accessories Eye Protector

Applicable nail sizes

mm (in.)

Image of nail L 45(1-3/4) - 90(3-1/2)
d 2.5(.099) - 3.3(.131)
D 6.0(.236) - 7.2(.283)

Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.

  • Please contact local dealers for product availability and product details.
