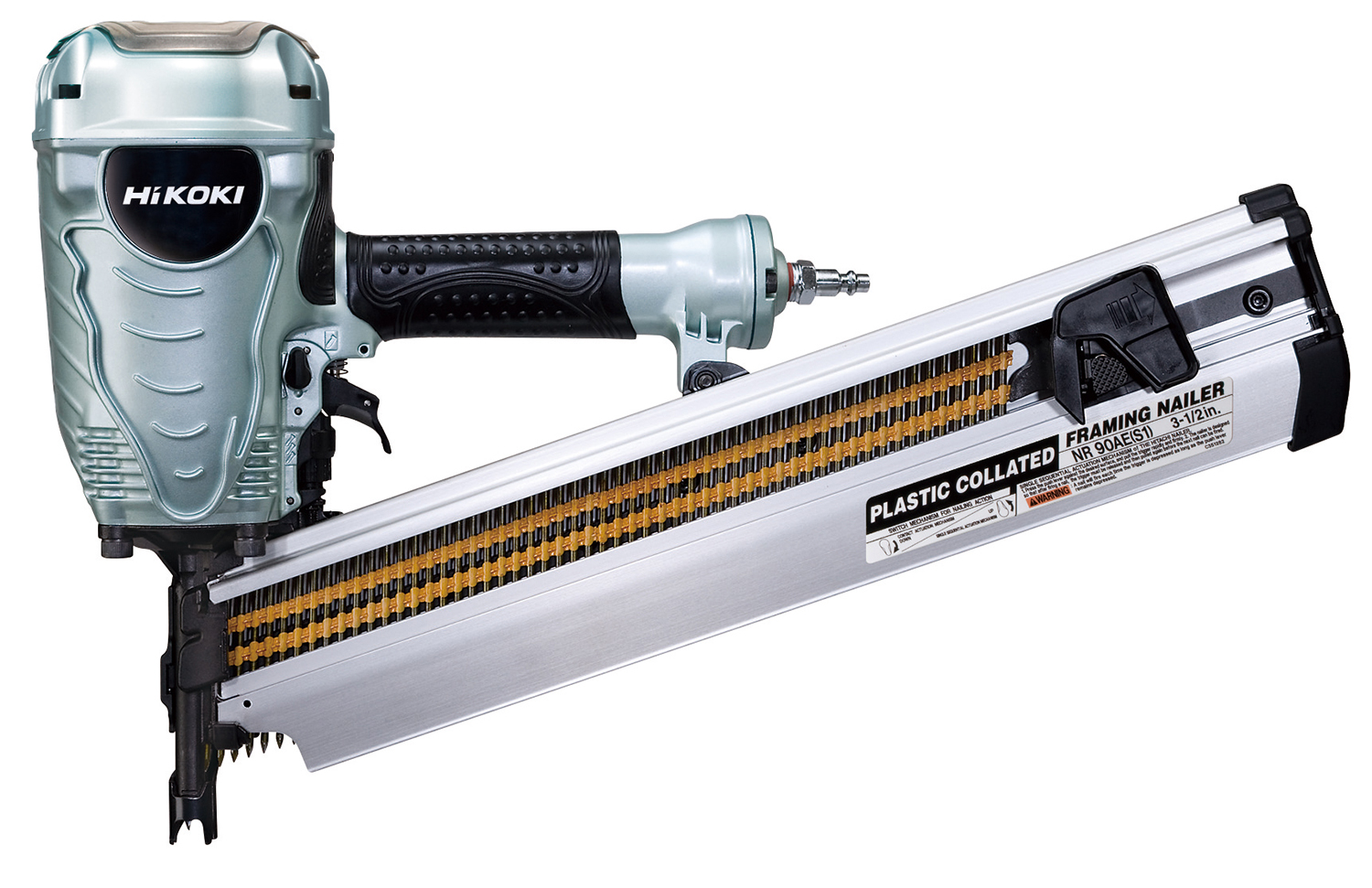

90mm (3-1/2") Strip Nailer
(Plastic Collated Round Head Nails)
NR90AE
Features
- "Single sequential actuation" and "Contact actuation" nailing change mechanism
- Height 322mm
- Rapid driving and quick response
- Tool-less adjustment in driving depth
- Rubber grip and elastomer-layered trigger
Specifications
| Driving System | Piston Reciprocating Action |
|---|---|
| Operating Pressure Range in | 5 - 8.5kgf/cm2 |
| Gauge Pressure | (70 - 120psi) |
| Driving Speed | 3 nails/sec. |
| Loading capacity | 64-70 nails |
| Air Inlet | NPT 3/8 Thread |
| Dimensions (L x H) | 527 x 322mm(20-3/4" x 12-11/16") |
| Weight | 3.4kg (7.5 lbs.) |
| Standard Accessories | Eye Protector |
Applicable nail sizes
mm (in.)
 |
L | 50(2) - 90(3-1/2) |
|---|---|---|
| d | 2.9(.113) - 3.8(.148) | |
| D | 7.0(.276) – 7.6(.300) |
Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
- Please contact local dealers for product availability and product details.
