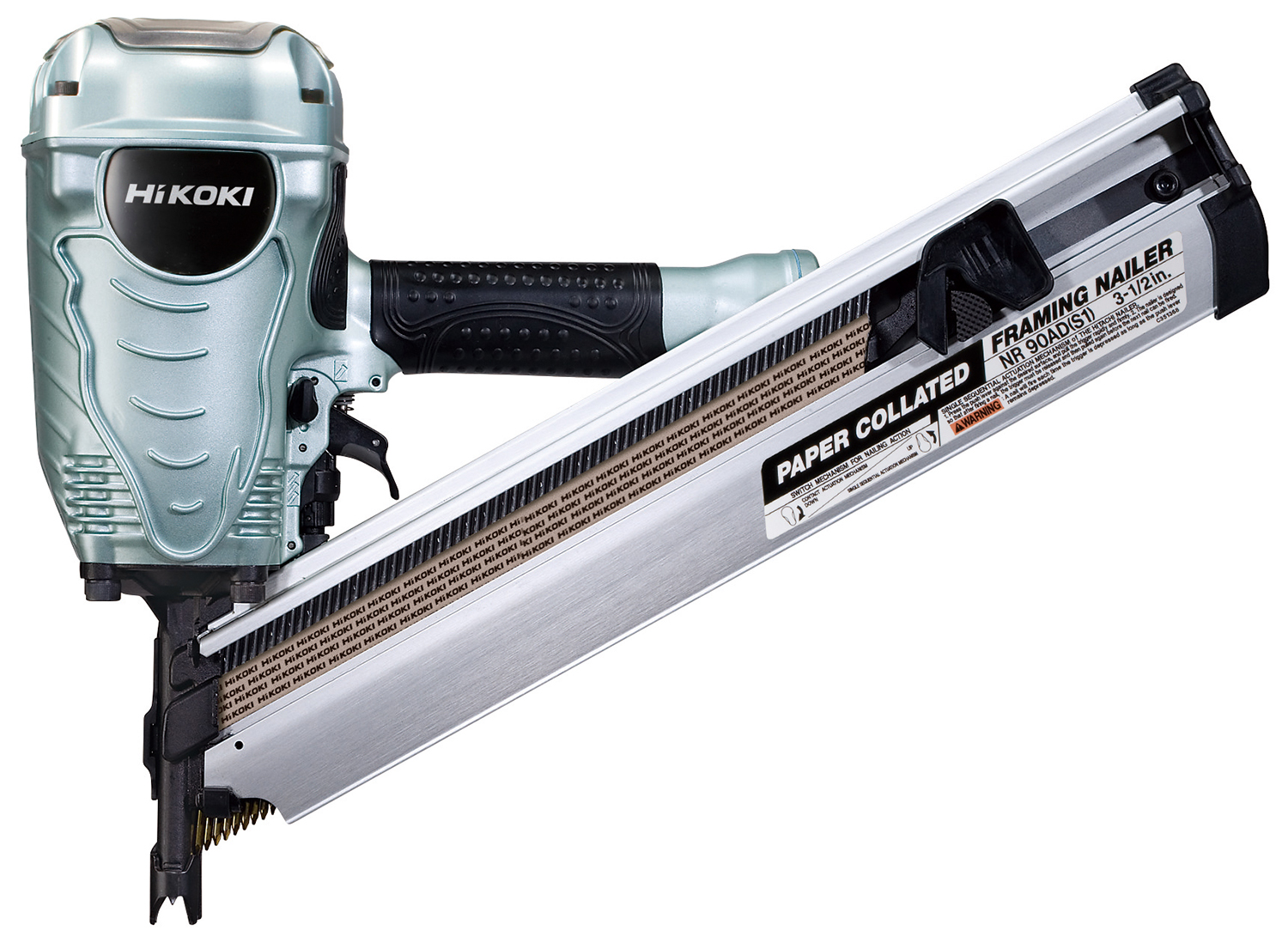

90mm (3-1/2") Strip Nailer (Paper Collated Clip Head Nails) NR90AD
Features
- "Single sequential actuation" and "Contact actuation" nailing change mechanism
- Height 322mm
- Rapid driving and quick response
- Tool-less adjustment in driving depth
- Rubber grip and elastomer-layered trigger
Specifications
| Driving System | Piston Reciprocating Action |
|---|---|
| Operating Pressure Range in | 5 - 8.5kgf/cm2 |
| Gauge Pressure | (70 - 120psi.) |
| Driving Speed | 3 nails/sec. |
| Loading Capacity | 50-74 nails |
| Air Inlet | 3/8 NPT thread |
| Dimensions (L x H) | 462 x 322 mm(18-3/16" x 12-11/16") |
| Weight | 3.9 kg (8.6 lbs.) |
| Standard Accessories | Eye Protector |
Applicable nail sizes
mm (in.)
 |
L | 50(2) - 90(3-1/2) |
|---|---|---|
| d | 2.9(.113) - 3.8(.148) | |
| D | 6.8(.266) - 7.7(.303) |
Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
