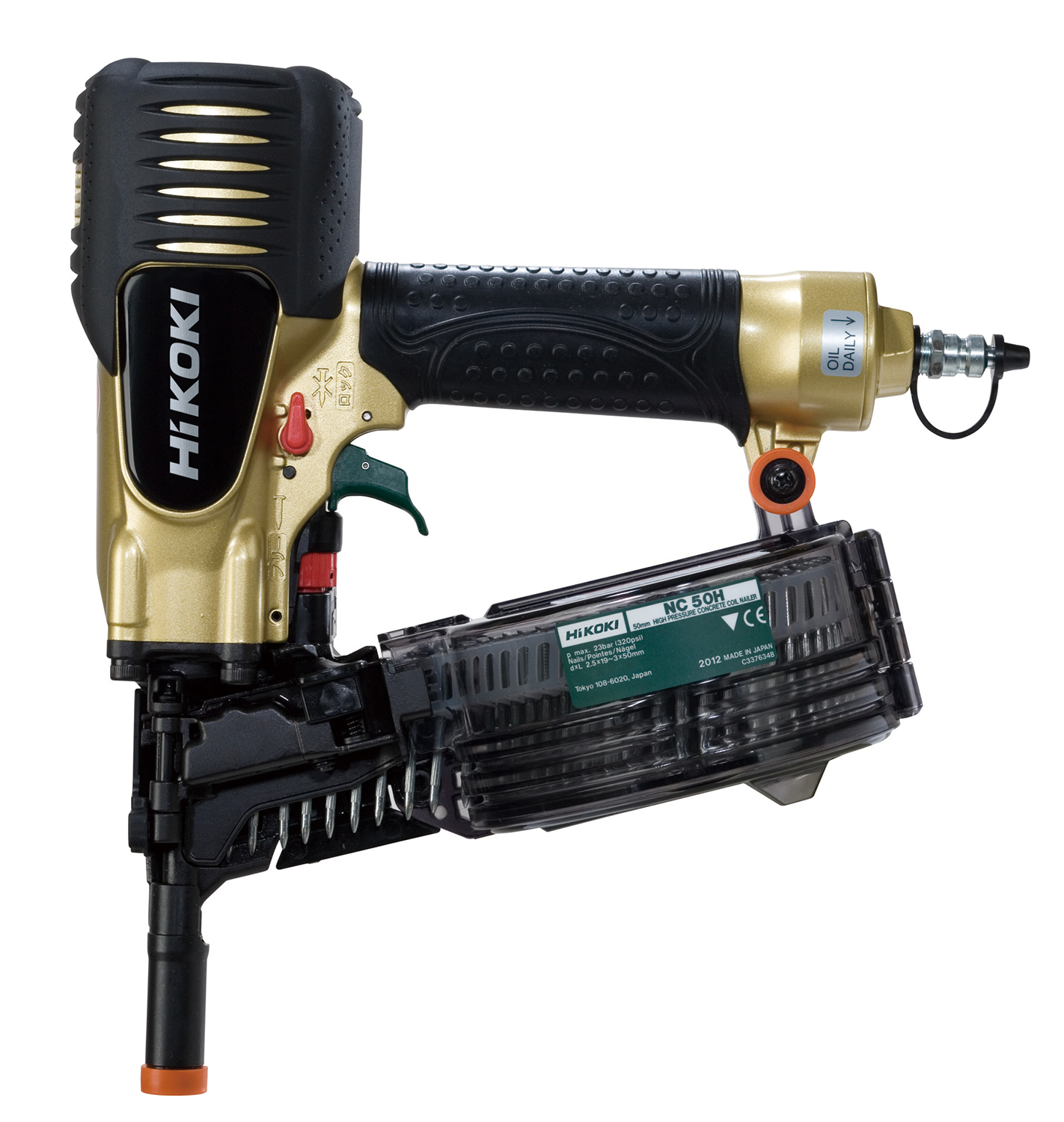

50mm (2") High Pressure Concrete Coil Nailer NC50H
Features
- For high pressure operation
- High driving power in comparison with HiKOKI regular pressure nailers
- For sheet collated nails
- Drives nails in various sizes
- Length 285mm and height 294mm
- Forward exhaust
- Rubber grip
Specifications
| Driving System | Piston Reciprocating Action |
|---|---|
| Operating Pressure Range in | 12 - 23kgf/cm2 |
| Gauge Pressure | (170 - 320psi) |
| Driving Speed | 3 nails/sec. |
| Loading capacity | 100 - 200 nails |
| Air Inlet | Air Plug for high pressure operation |
| Dimensions (L x H) | 285 x 294mm (11-1/4" x 11-9/16") |
| Weight | 2.2kg (4.9lbs.) |
| Standard Accessories | Eye Protector, Oiler, Nose Cap |
Applicable nail sizes
mm (in.)
 |
L | 19(3/4) – 50(2) |
|---|---|---|
| d | 2.5(.099) – 3.0(.118) | |
| D | 6.0(.236) and 6.1(.240) |
Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
- Please contact local dealers for product availability and product details.
