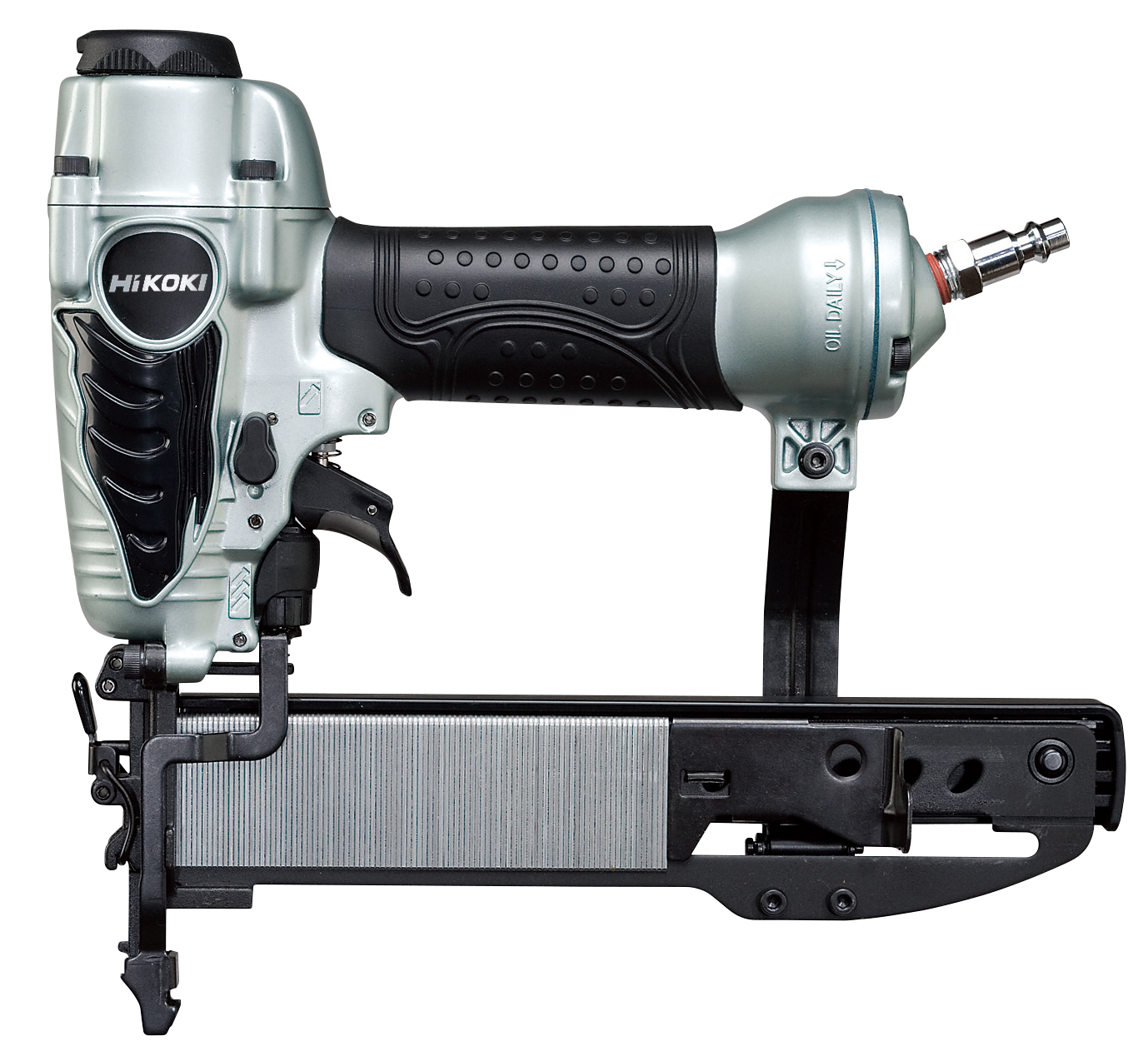

38mm (1-1/2") Stapler N3804AB3(S)
Features
- Accepts 1/4" crown staples
- "Single sequential actuation" and "Contact actuation" nailing change mechanism
- Tool-less adjustment in driving depth
- Quick jam release
- Tool-less 360° exhaust direction
- Rubber grip and elastomer-layered trigger
Specifications
| Driving System | Piston Reciprocating Action |
|---|---|
| Operating Pressure Range in | 5-8.5kg/cm2 |
| Gauge Pressure | (70-120psi) |
| Driving Speed | 3 staples/sec. |
| Loading Capacity | 100 staples |
| Air Inlet | NPT 1/4 Thread |
| Dimensions (L x H) | 263 x 235mm (10-11/32" x 9-1/4") |
| Weight | 1.0kg (2.2 lbs.) |
| Standard Accessories | Nose Cap, Eye Protector ,Carrying Case |
Applicable nail sizes
mm (in.)
 |
L | A | B | C |
|---|---|---|---|---|
| 13 (1/2) | 3.5 (.138) | 1.08 (.043) | 1.25 (.049) | |
| 16 (5/8) | ||||
| 19 (3/4) | ||||
| 22 (7/8) | ||||
| 25 (1) | ||||
| 29 (1-1/8) | ||||
| 32 (1-1/4) | ||||
| 38 (1-1/2) |
Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
- Please contact local dealers for product availability and product details.
