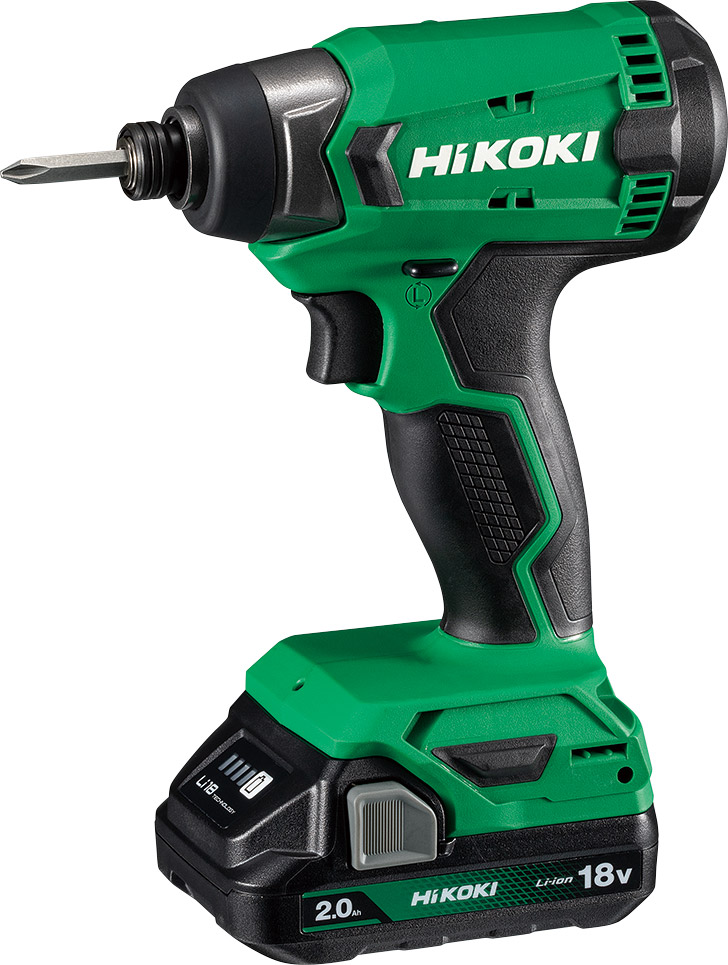

18V Cordless Impact Driver WH18DA

WH18DA 18V Cordless Impact Driver

  • 18VLi-ion battery

Specifications and others

Easy to Use in Tight Spaces

  • 18V Performance in a Compact Design

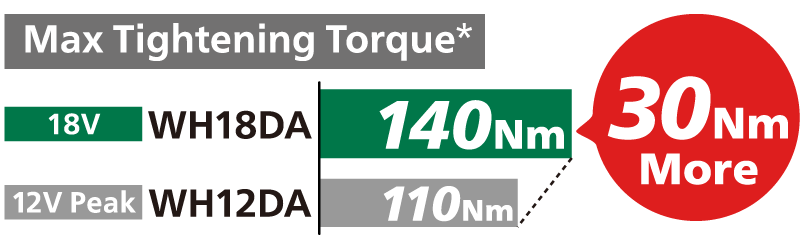

    Regarding Max tightning torque, WH18DA is 140Nm, WH12DA is 110Nm and 30Nm more strong.

    • When tightening an M14 high tension bolt (Grade 12.9) for three seconds with a socket adapter and a hexagonal socket (40mm in overall length) attached.

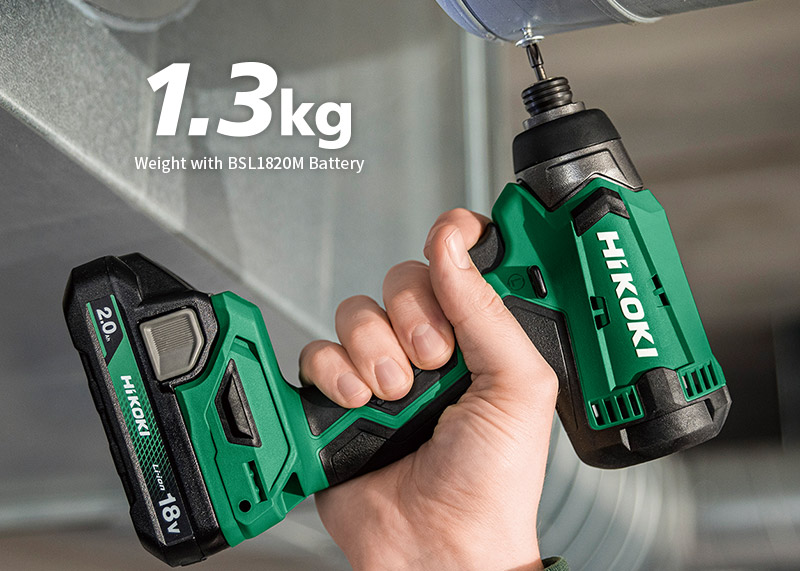

    Weight:1.3kg (with BSL1820M Battery).

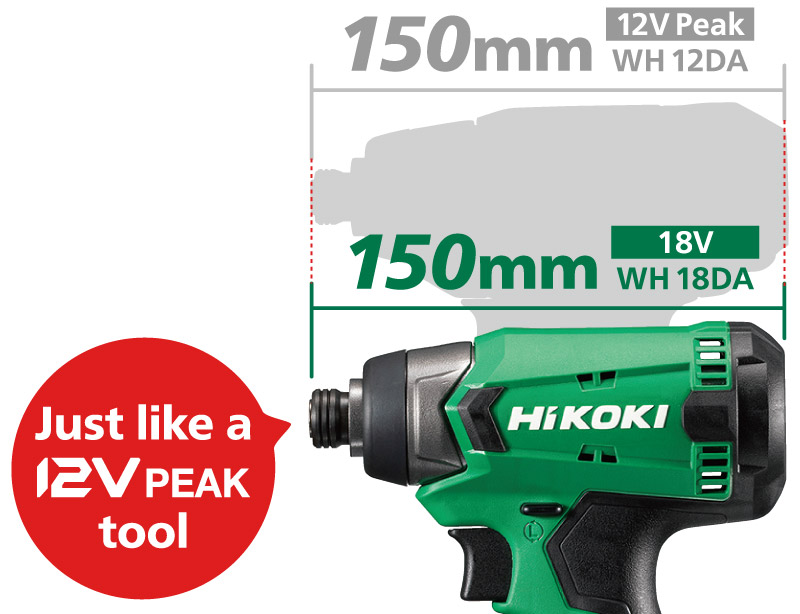

  • Compact Head

    Overall Length:150mm, Just like a 12V PEAK tool.

Compact & Lightweight

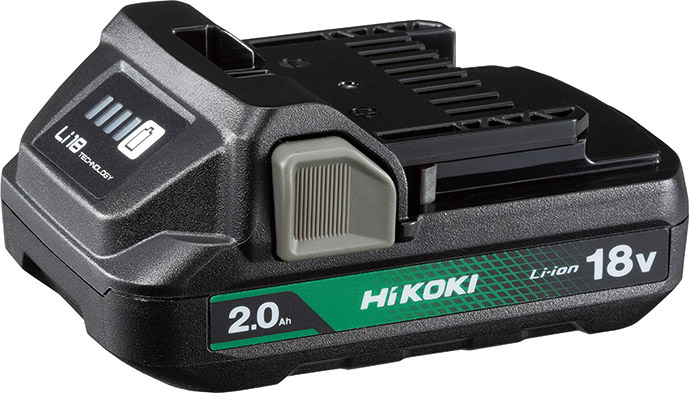

  • BSL1820M

    2.0Ah Lithium-ion Battery with Remaining Battery Indicator

    BSL1820M

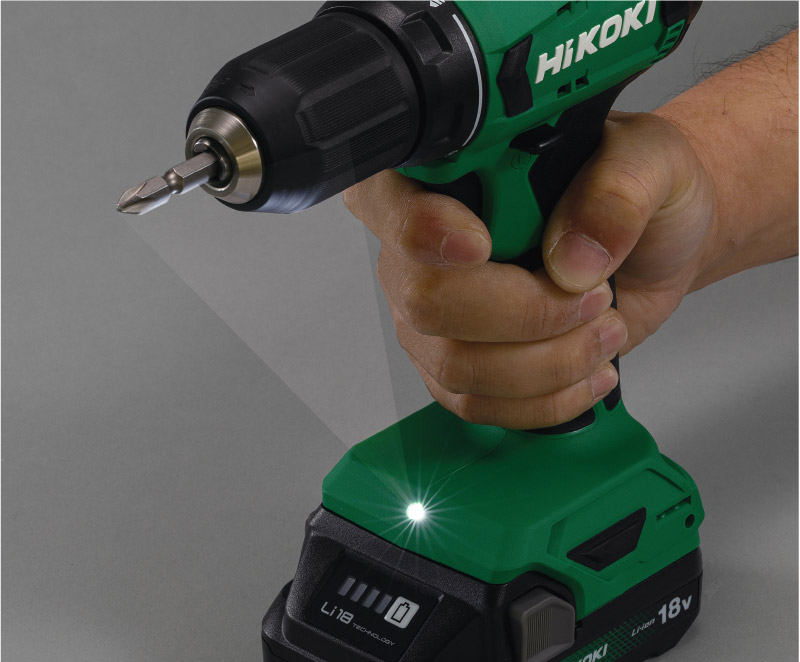

Built-in LED Light

  • The light stays on while the trigger is pulled.

    • Cordless Driver Drill shown for illustration purposes only.

Runtime per Charge*

Work Ah Runtime per Charge
Wood Screws ⌀4.5 x 90mm
Wood screws into lauan
without pilot holes		 2.0Ah Approx. 90 Screws
  • The values are shown for reference purposes and may vary according to materials and conditions.

Specifications

Capacity Machine Screw 4 - 8mm
Bolt M5 - M14
High Tension Bolt M5 - M12
Max Tightening Torque*1 140Nm
Battery Voltage 18V
No Load Speed 0 - 2,700/min
Impact Rate 0 - 3,600/min
Overall Length 150mm
Weight*2 1.3 - 1.9kg
Standard Accessories*3 2 Batteries (BSL1820M), Charger (UC18YKSL),
Battery Cover, Carrying Case
  1. When tightening an M14 high tension bolt (Grade 12.9) for three seconds with a socket adapter and a hexagonal socket (40mm in overall length) attached.
  2. Weight according to EPTA-Procedure 01/2014. The weight differs depending on the attached battery. The heaviest weight is measured with the BSL36B18 battery (sold separately).
  3. Included accessories vary by country or area.
PDF: 1,821KB
  • Please contact local dealers for product availability and product details.
