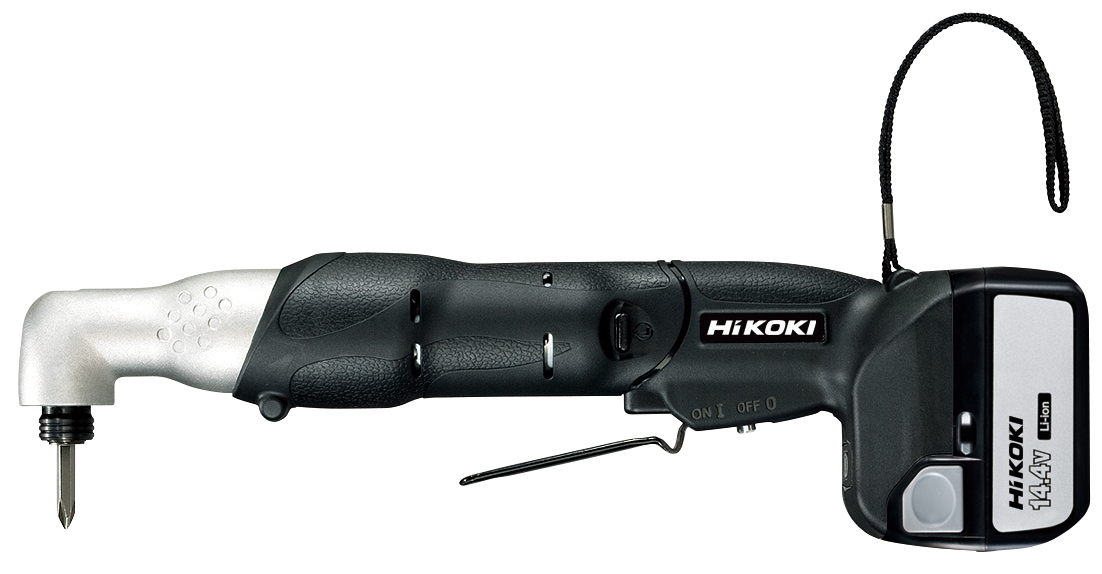

14.4V Angle Impact Driver WH14DCL

WH14DCL Angle Impact Driver

Features

  • Center height 16.5mm and head height 53mm
  • Max tightening torque 50Nm (440in.-lbs.)
  • Paddle lever switch
  • Includes slide Lithium-ion battery and charger
  • Remaining battery indicator lamp

Specifications

CapacityF Bolt 4-10mm (5/32-3/8")
High Tension Bolt 4-8mm (5/32-5/16")
Machine Screw 4-8mm (5/32-5/16")
Drive 6.35mm (1/4") Hex Bit Shank
Tightening Torque 50Nm (440in.-lbs.)
Battery Voltage 14.4V
No Load Speed 0-2,100/min
Full Load Impact Rate 0-3,200/min
Overall Length 360mm (14-3/16")
Weight 1.6kg (3.5 lbs.)
Standard Accessories 2 Batteries (BSL1430), Charger (UC18YRSL), Carrying Case

Charging Time for Compatible Batteries

Battery Type
Voltage Type Capacity*1 Cooling
Windows		 UC18YGSL
UC18YKSL		 UC18YRSL*2
UC18YFSL*2		 UC18YML2*2
(AC/DC)*3
14.4V BSL1415 1.5Ah ● 40min. 22min. 22/60min
BSL1415X 1.5Ah ● 40min. 22min. 22/60min
BSL1420 2.0Ah ● 60min. 30min. 30/80min
BSL1425 2.5Ah ● 75min. 35min. 35/100min
BSL1430 3.0Ah ● 90min. 45min. 45/120min
BSL1440 4.0Ah ● 120min. 60min. 60/160min
BSL1450 5.0Ah ● 150min. 75min. 75/200min
  1. The figures of battery capacity are nominal values.
  2. With cooling fan.
  3. Two-way AC/DC charger usable with in-car power source.

Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard
accessories may vary from country to country.

  • Please contact local dealers for product availability and product details.
