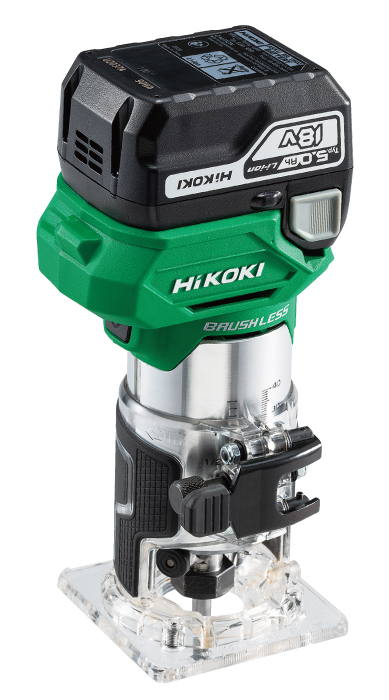

18V Cordless Laminate Trimmer M1808DA

M1808DA

  • 18VLi-ion battery

  • Brushless Motor
Specifications and others

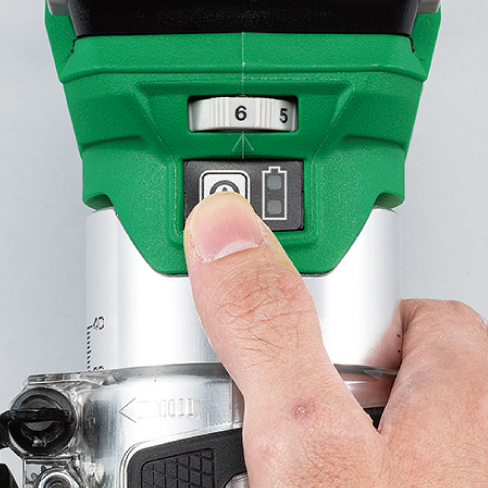

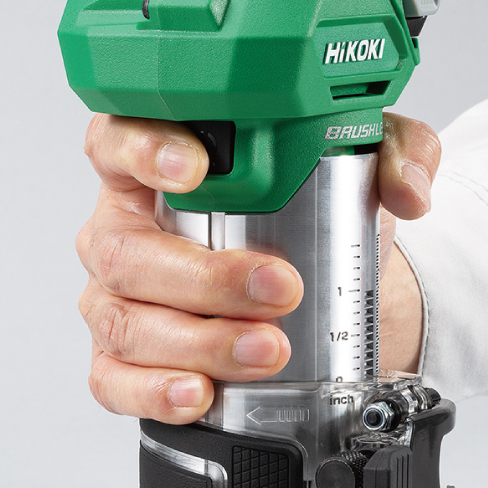

One-Handed Power On/Off

  • The two buttons positioned close to your grip allow one-hand power on/off control, while the user is required to press the buttons in sequence to start the trimmer for added safety.

    1. Power Switch

    Power Switch

    2. Motor Switch

    Motor Switch

Cuts Faster than a Corded Trimmer*

  • The combination of a high power output MULTI VOLT battery and high efficiency brushless motor delivers a cutting speed faster than a corded trimmer.

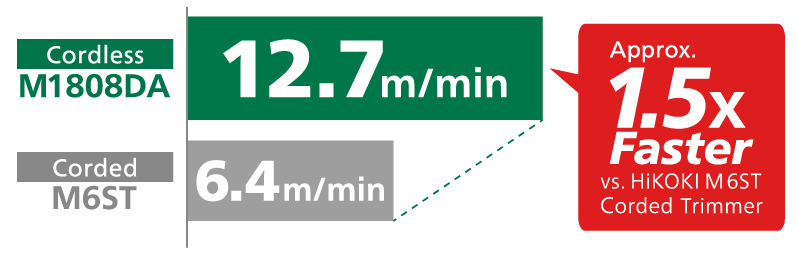

    Cutting Speed Comparison

    Cutting 9mm thick plywood with 30N pressing force using BSL36A18 battery and 6.35mm straight bit.

    Cuts Faster than a Corded Trimmer
    • Vs. HiKOKI's M6ST Corded Trimmer.

  • Lightest Weight in its Class*

    • As of January 2021, among cordless trimmers in its same class made by leading power tool manufacturers. (Survey by Koki Holdings)

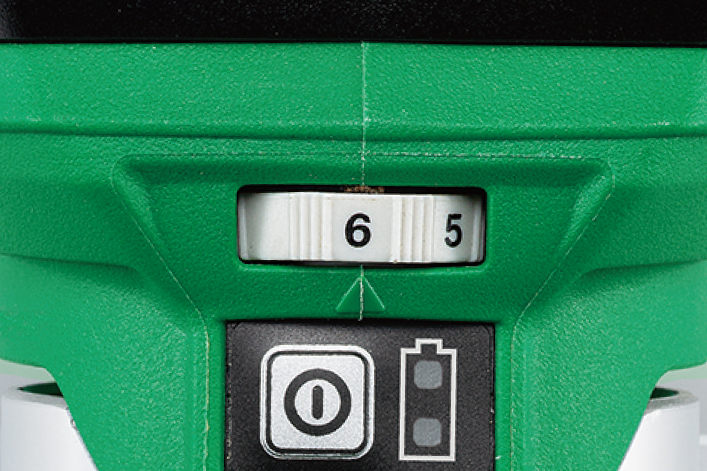

  • Variable Speed Control Dial

    Variable Speed Control Dial

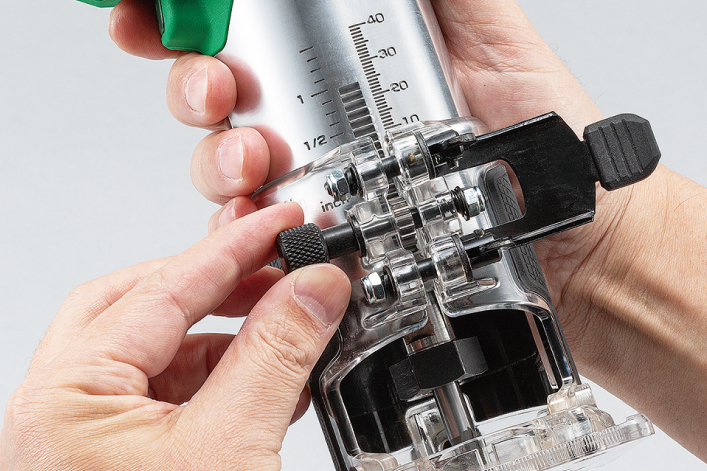

  • Quick Release Lever

    For Base Adjustment with Rack-and-Pinion Micro Adjustment System

    For Base Adjustment with Rack-and-Pinion Micro Adjustment System

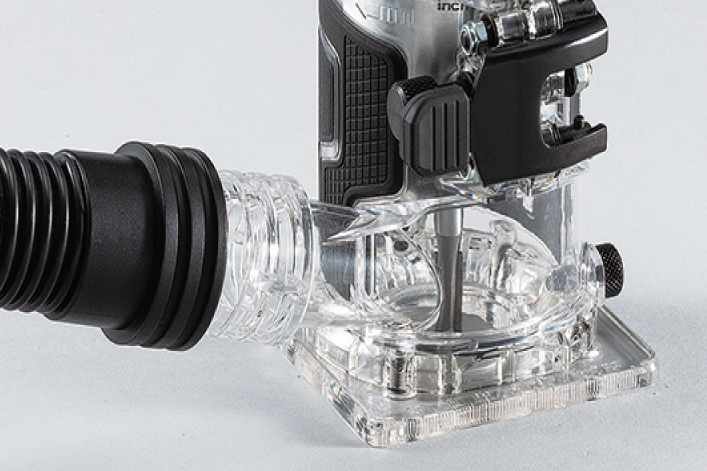

  • Dust Collection Adapter Set

    For use with a Vacuum Cleaner

    For use with a Vacuum Cleaner

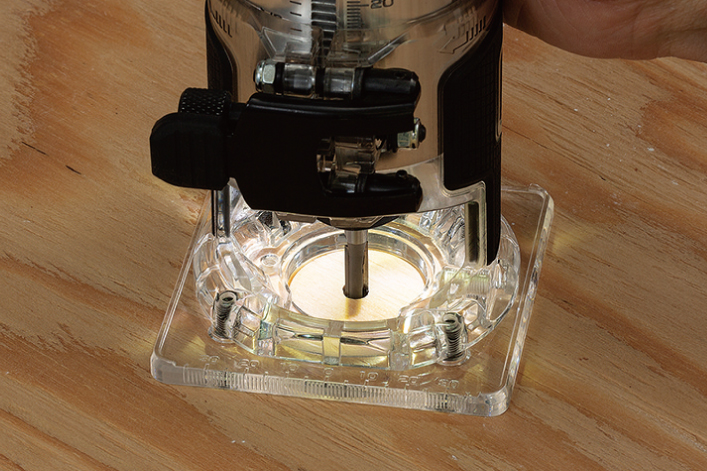

  • Dual LED Lights

    For Excellent Visibility

    Dual LED Lights For Excellent Visibility

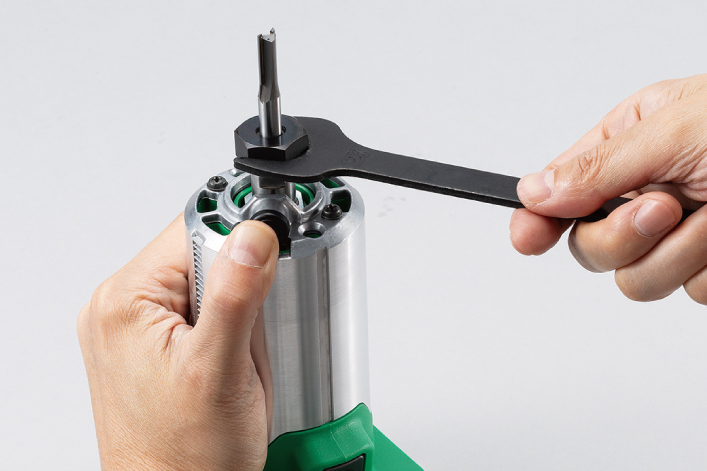

  • Spindle Lock

    For Easy Bit Change

    Spindle Lock

Runtime per Charge*

Work Ah Runtime per Charge*
MDF trimming (6mm straight bit) 4mm in depth 5.0Ah Approx. 120m
  • The values are shown for reference purposes and may vary according to materials and conditions.

Specifications

Collet Cone Capacity*1 6mm and 8mm (or 1/4")
Main Body Stroke 40mm
Battery Voltage 18V
No Load Speed 10,000 - 30,000/min
Dimensions
(with BSL1850C)		 Overall Length 109mm
Depth 100mm
Overall Height 229mm
Weight (with Dust Collection Adapter Set)*2 1.7kg (with BSL1850C)
2.2kg (with BSL36B18)*3
Standard Accessories*4 2 Batteries (BSL1850C), Charger (UC18YSL3),
Collet Cone, Trimmer Guide Set, Template Guide,
Dust Collection Adapter Set, Straight Guide Set,
Wrench, Battery Cover, Carrying Case
  1. Collet diameter varies by region.
  2. Weight: according to EPTA-Procedure 01/2014.
  3. Sold separately.
  4. Standard accessories vary by country or area.
PDF： 1,368KB
  • Please contact local dealers for product availability and product details.
