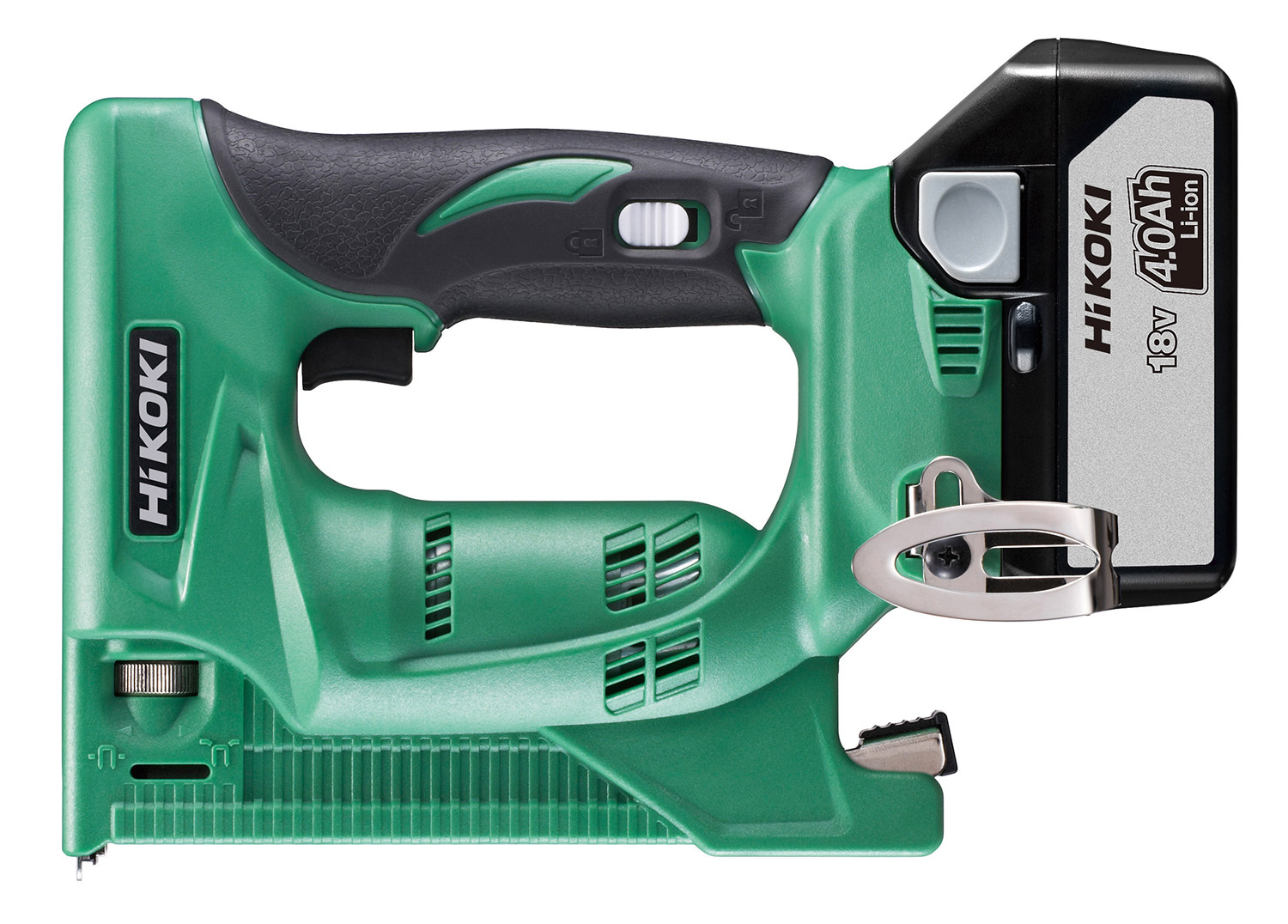

18V Cordless Stapler N18DSL
Features
- For 15/32" width staples
- Tool-less adjustment in driving depth by dial
- Dry-fi re lockout
- Compact and lightweight
- 4.0Ah Lithium-ion battery provides longer runtime per charge than 3.0Ah Lithium-ion battery
- Includes 2 slide Lithium-ion batteries and charger
Specifications
| Capacity: staple Length | 6mm, 10mm, 13mm |
|---|---|
| Loading Capacity | 150 staples |
| Battery Voltage | 18V |
| Dimensions (L x H) | 235 x 166mm (9-1/4" x 6-1/2") |
| Weight | 1.8kg (3.9lbs) |
| Standard Accessories | 2 Batteries (BSL1840 or BSL1830), Charger (UC18YRSL), Battery Cover, Carrying Case, Eye protector |
- Combinations of battery and charger may vary by countries or areas.
Charging Time for Compatible Batteries
| Battery | Type | |||||
|---|---|---|---|---|---|---|
| Voltage | Type | Capacity*1 | Cooling Windows |
UC18YGSL UC18YKSL |
UC18YRSL*2 UC18YFSL*2 |
UC18YML2*2 (AC/DC)*3 |
| 18V | BSL1815 | 1.5Ah | ● | 40min. | 22min. | 22/60min |
| BSL1815X | 1.5Ah | ● | 40min. | 22min. | 22/60min | |
| BSL1820 | 2.0Ah | ● | 60min. | 30min. | 30/80min | |
| BSL1825 | 2.5Ah | ● | 75min. | 35min. | 35/100min | |
| BSL1830 | 3.0Ah | ● | 90min. | 45min. | 45/120min | |
| BSL1840 | 4.0Ah | ● | 120min. | 60min. | 60/160min | |
| BSL1850 | 5.0Ah | ● | 150min. | 75min. | 75/200min | |
- The figures of battery capacity are nominal values.
- With cooling fan.
- Two-way AC/DC charger usable with in-car power source.
Applicable Staple sizes
| Shape | Model | Size (mm) | |||
|---|---|---|---|---|---|
| A | B | C | D | ||
 |
BF1206 | 11.75 | 0.5 | 0.7 | 6 |
| BF1210 | 10 | ||||
| BF1213 | 13 | ||||
Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
- Please contact local dealers for product availability and product details.
