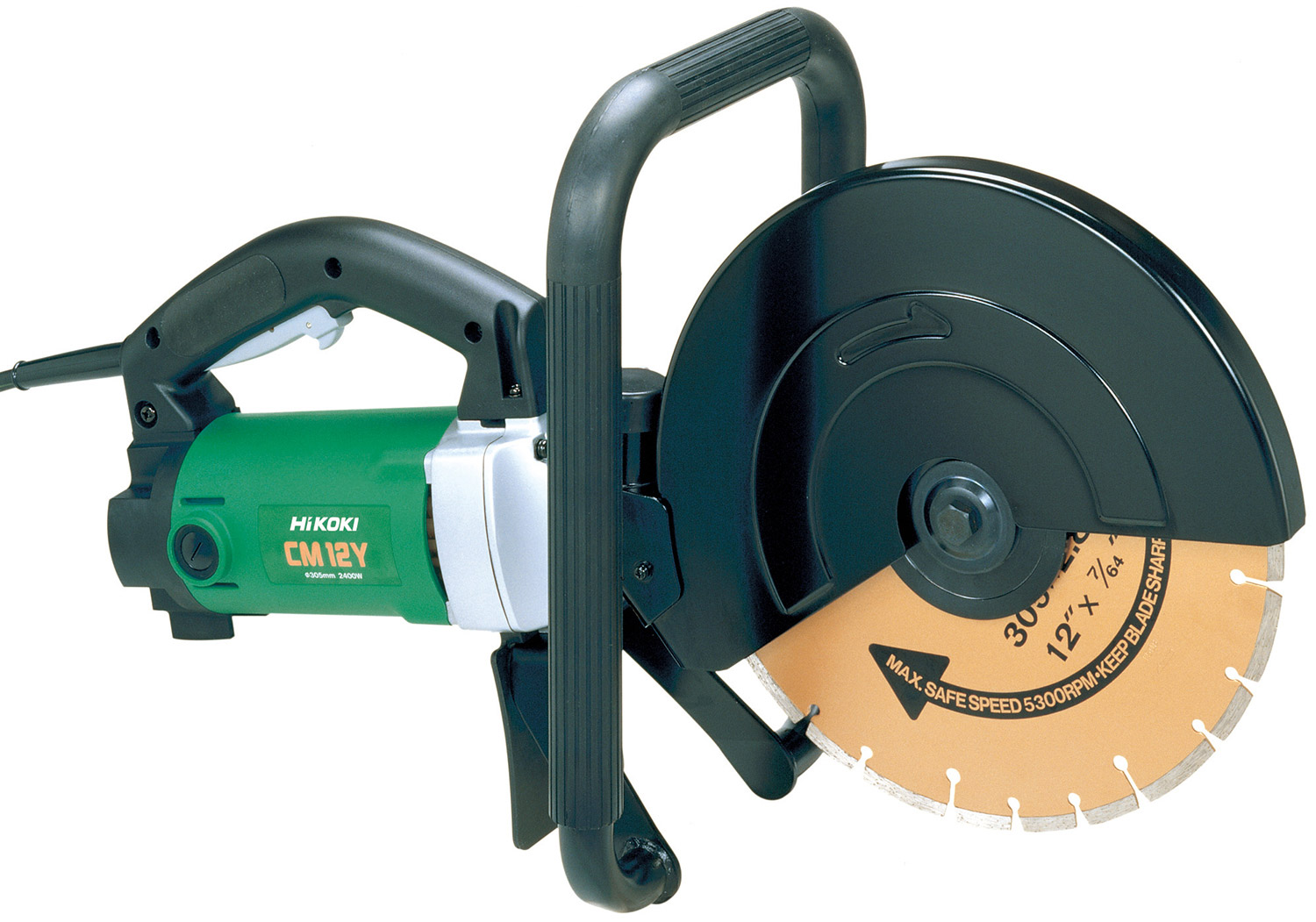

305mm (12") Disc Cutter CM12Y
CM12Y with an optional diamond wheel
Features
- Power input 2,400W
- Max cut depth: 100mm(4")
- Soft Start
- Large pipe handle for control
- Easier maintenance compared to engine cutters
Specifications
| Capacity: Wheel Dia. | 305mm (12") |
|---|---|
| Capacity: Max. Cut Depth | 100mm (4") |
| Capacity: Cut Depth per one cutting | 50mm (1-31/32") |
| Power Input | 2,400W |
| No Load Speed | 5,000/min |
| Arbor | 22mm (7/8") |
| Overall Length | 633mm (24-15/16") |
| Weight | 11.5kg (25.3 lbs.) |
| Standard Accessories | Dust Collection Adapter *, Eye Protector, Wrench |
- For abrasive materials.
Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
- Please contact local dealers for product availability and product details.
